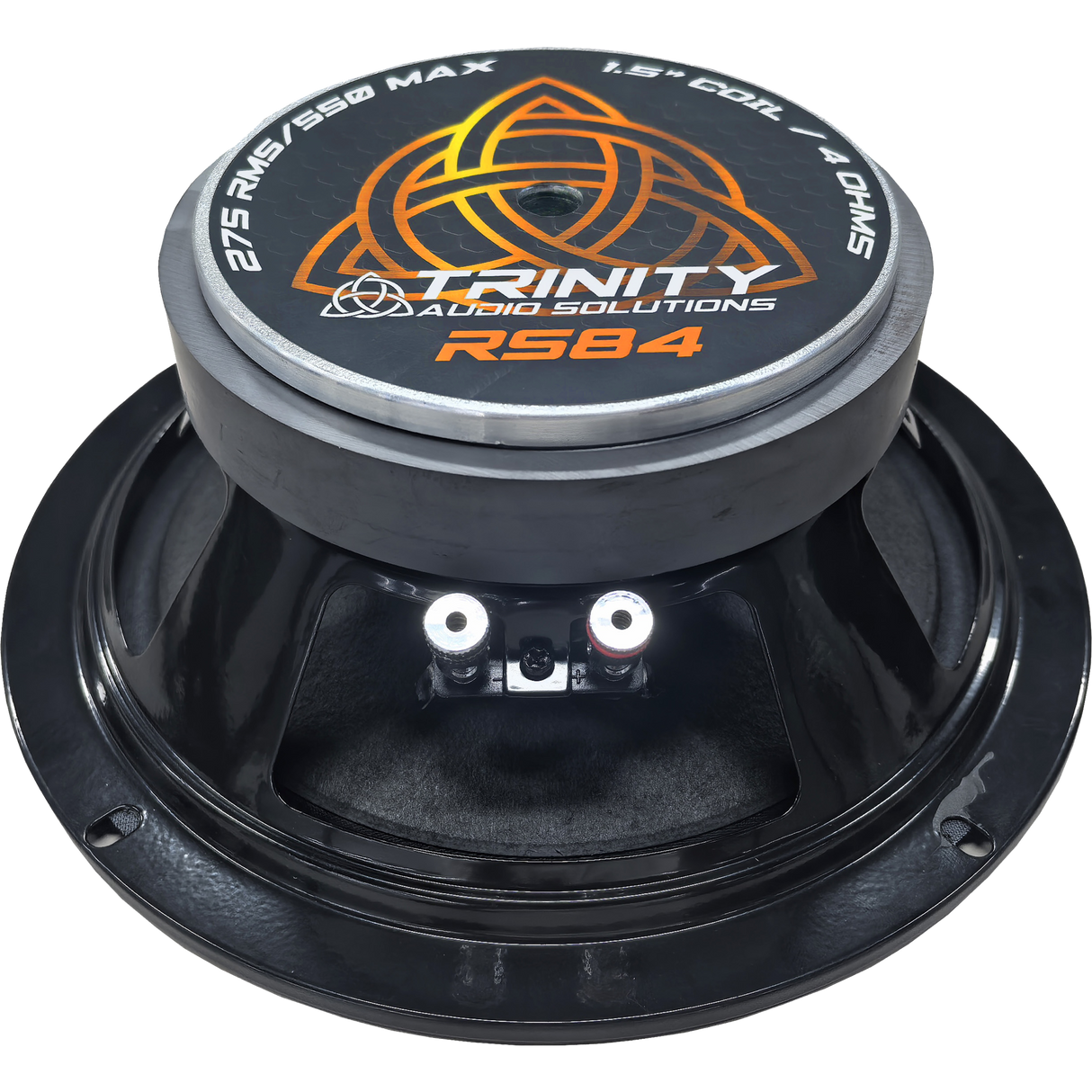

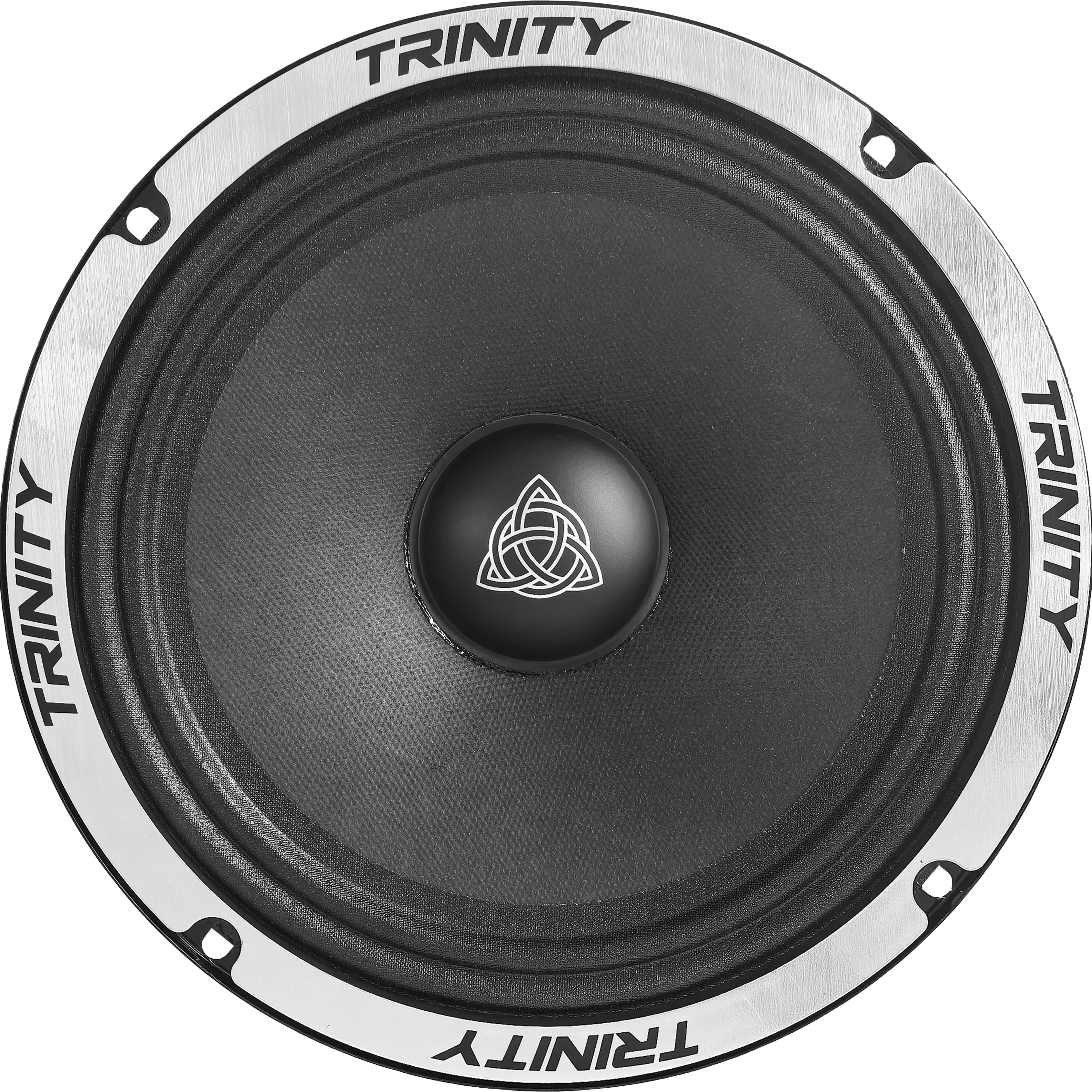

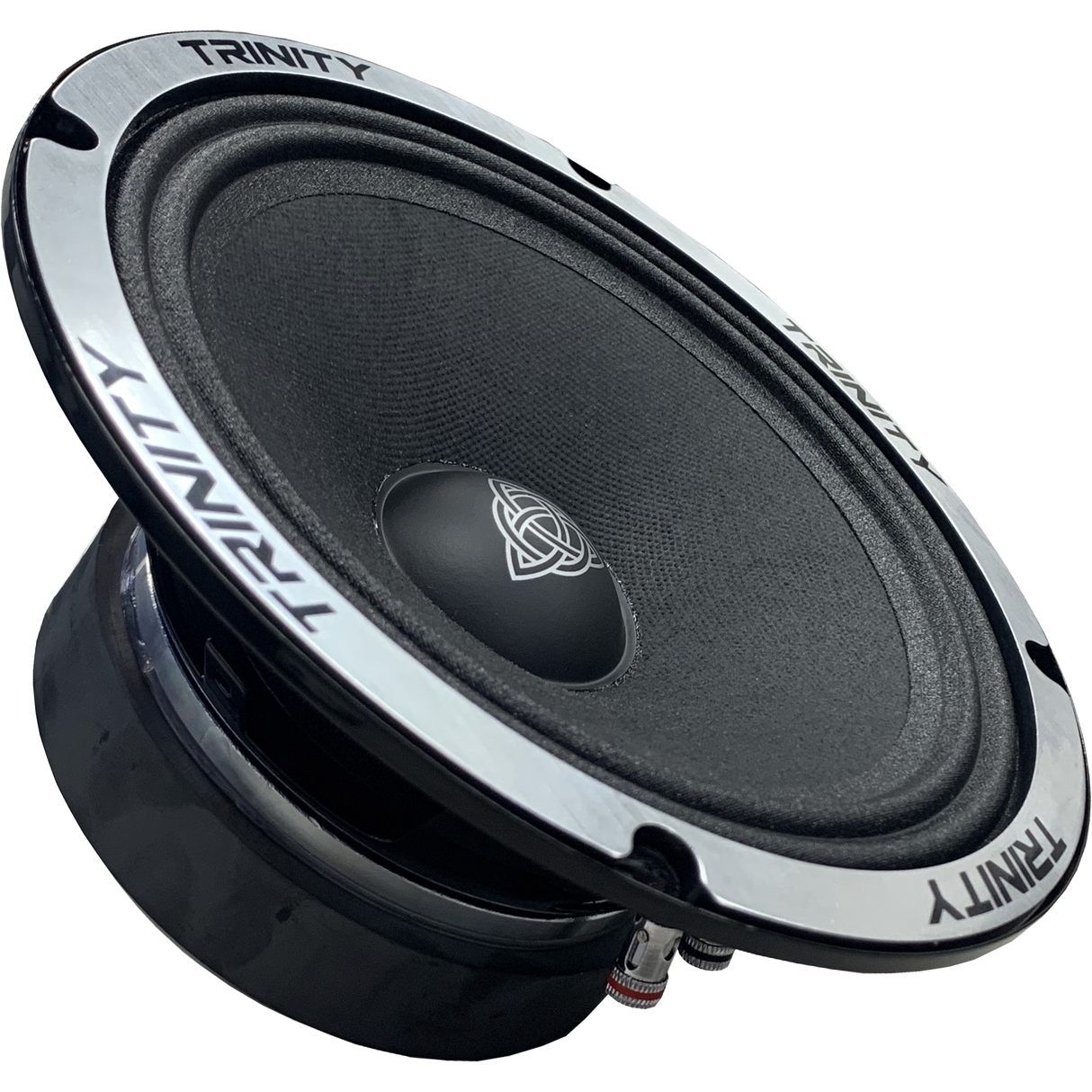

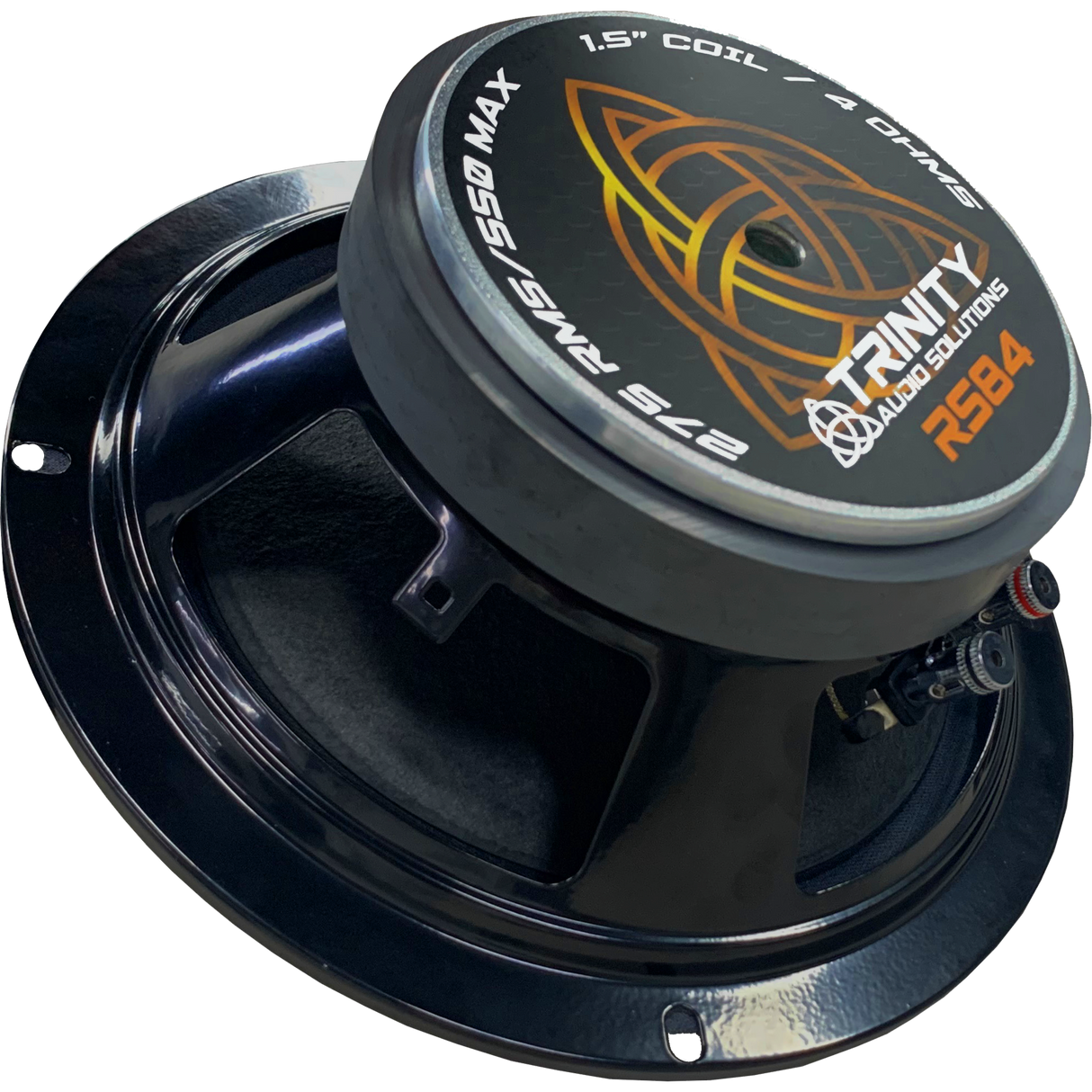

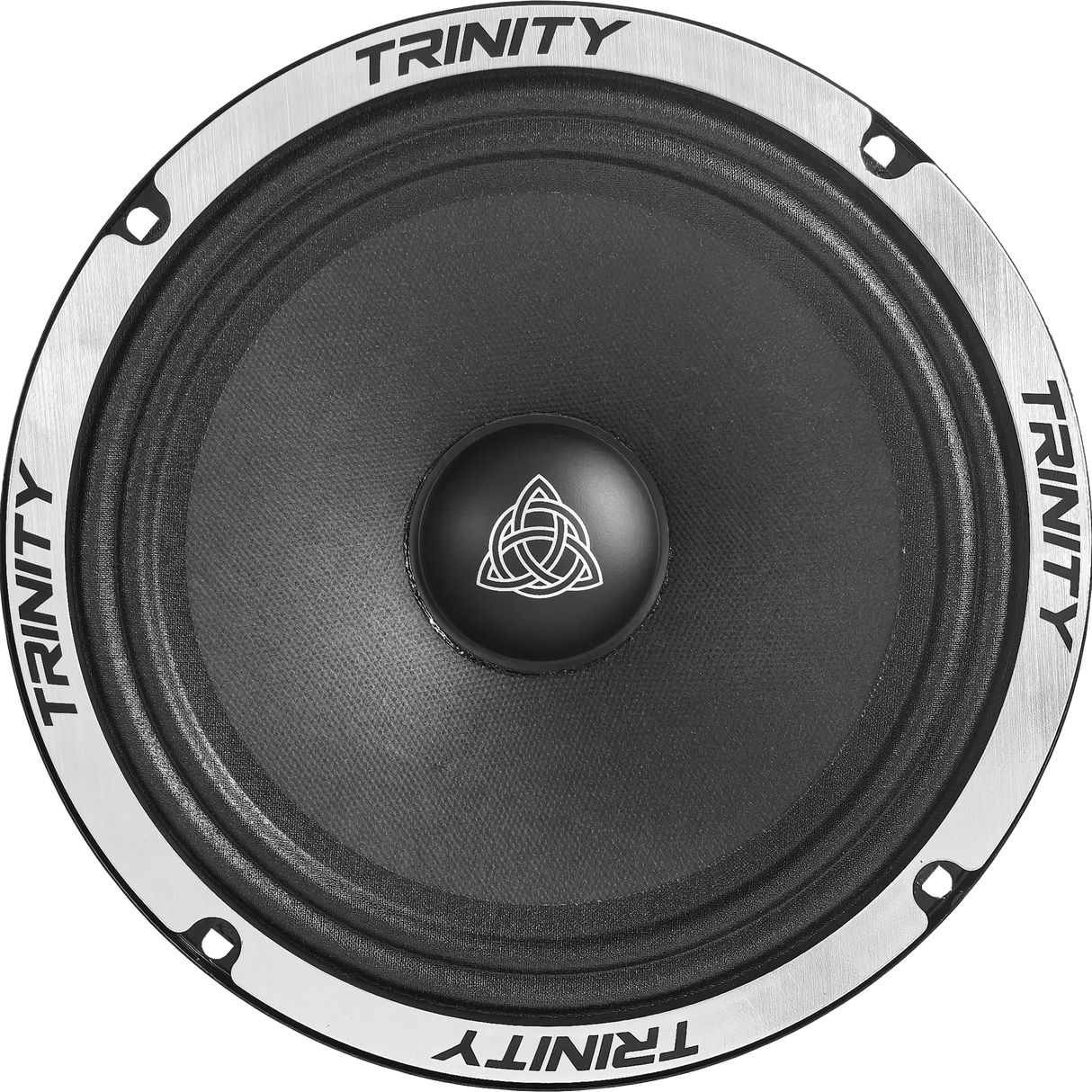

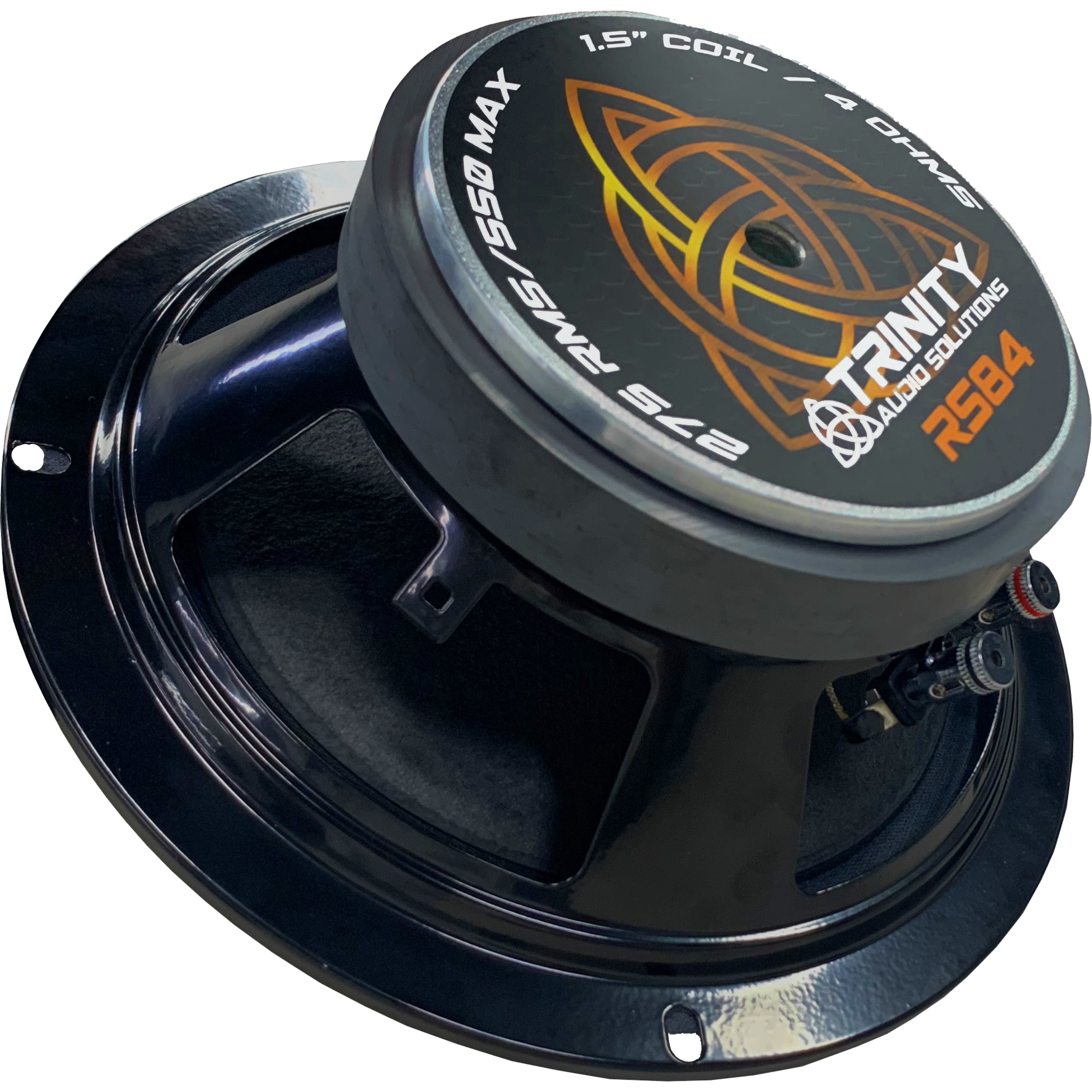

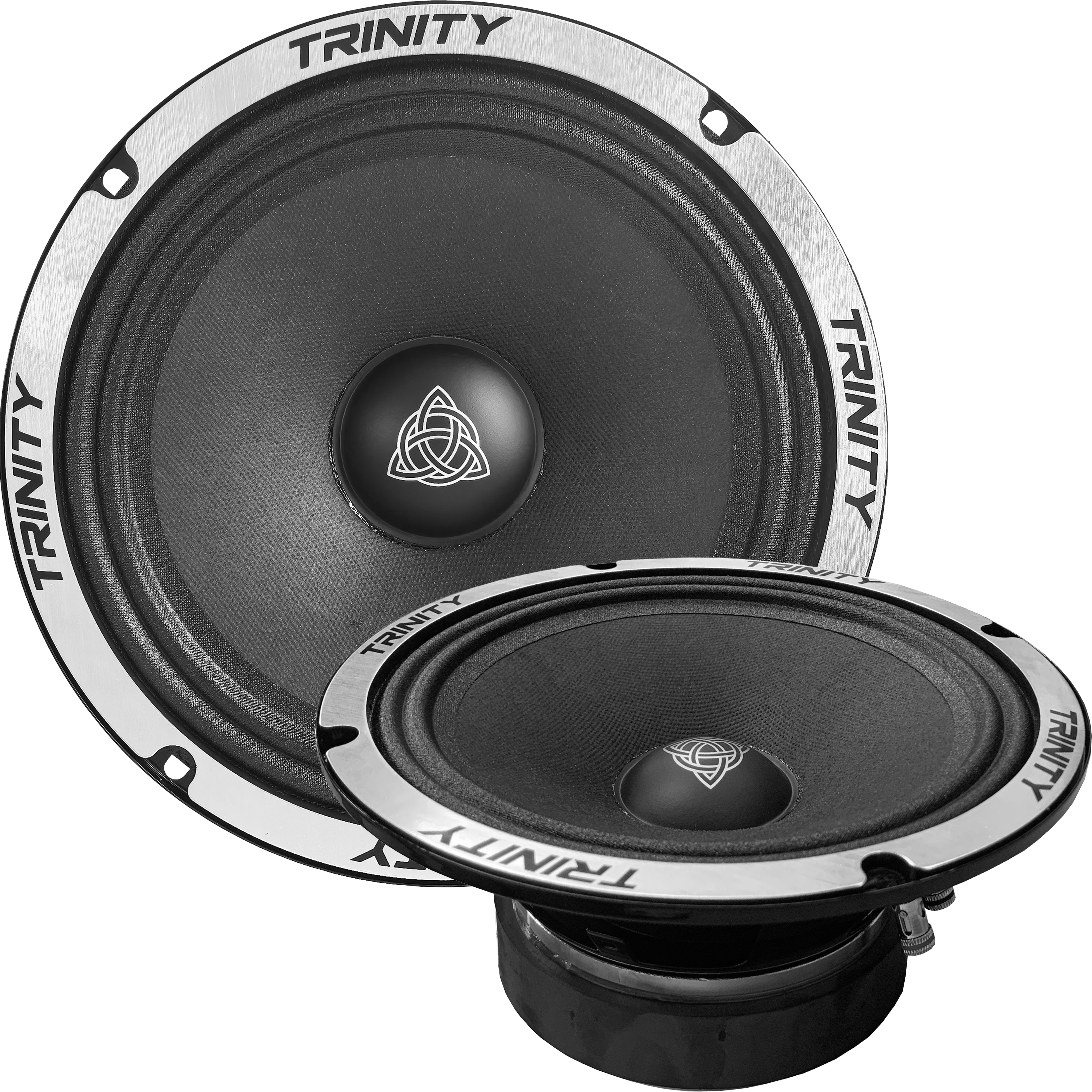

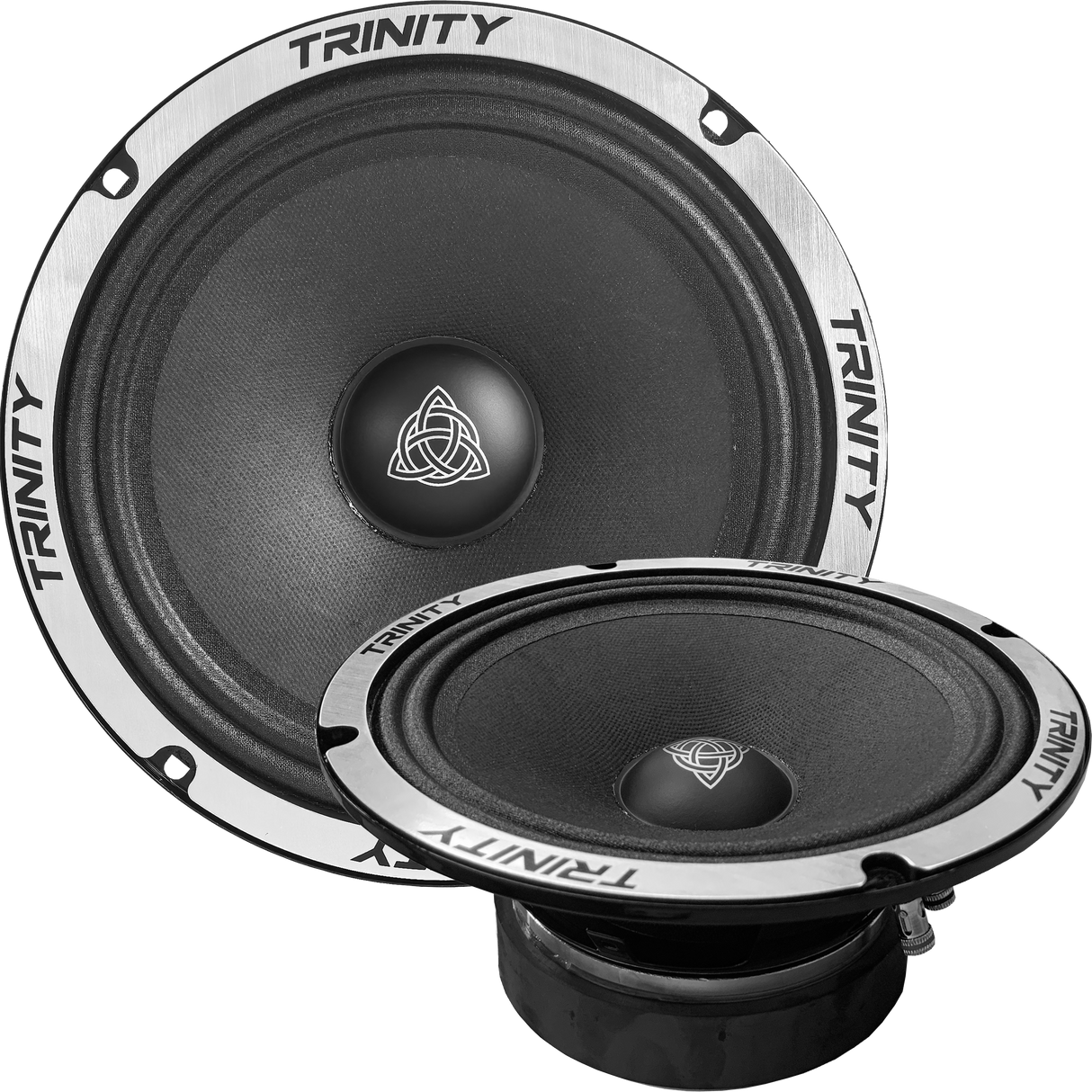

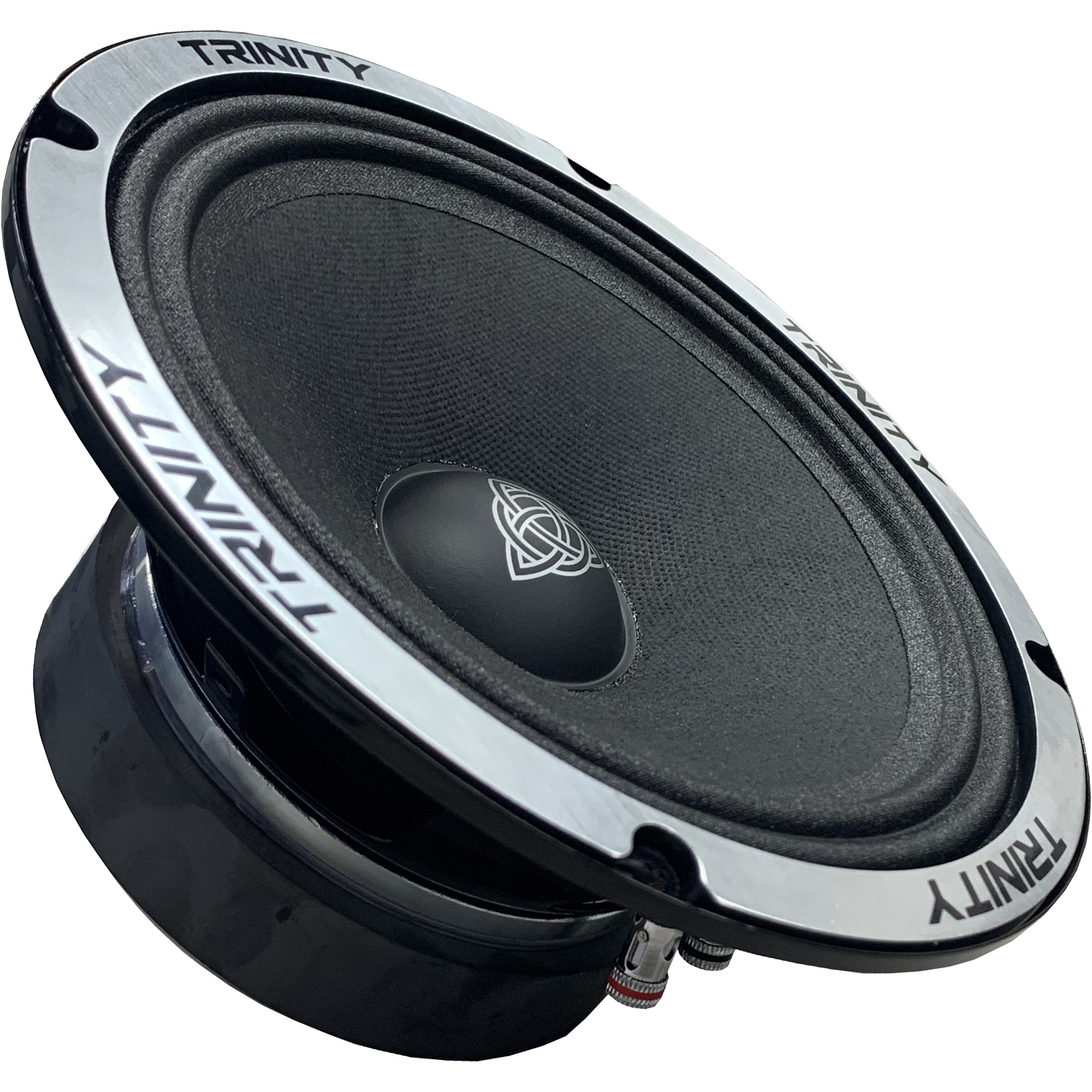

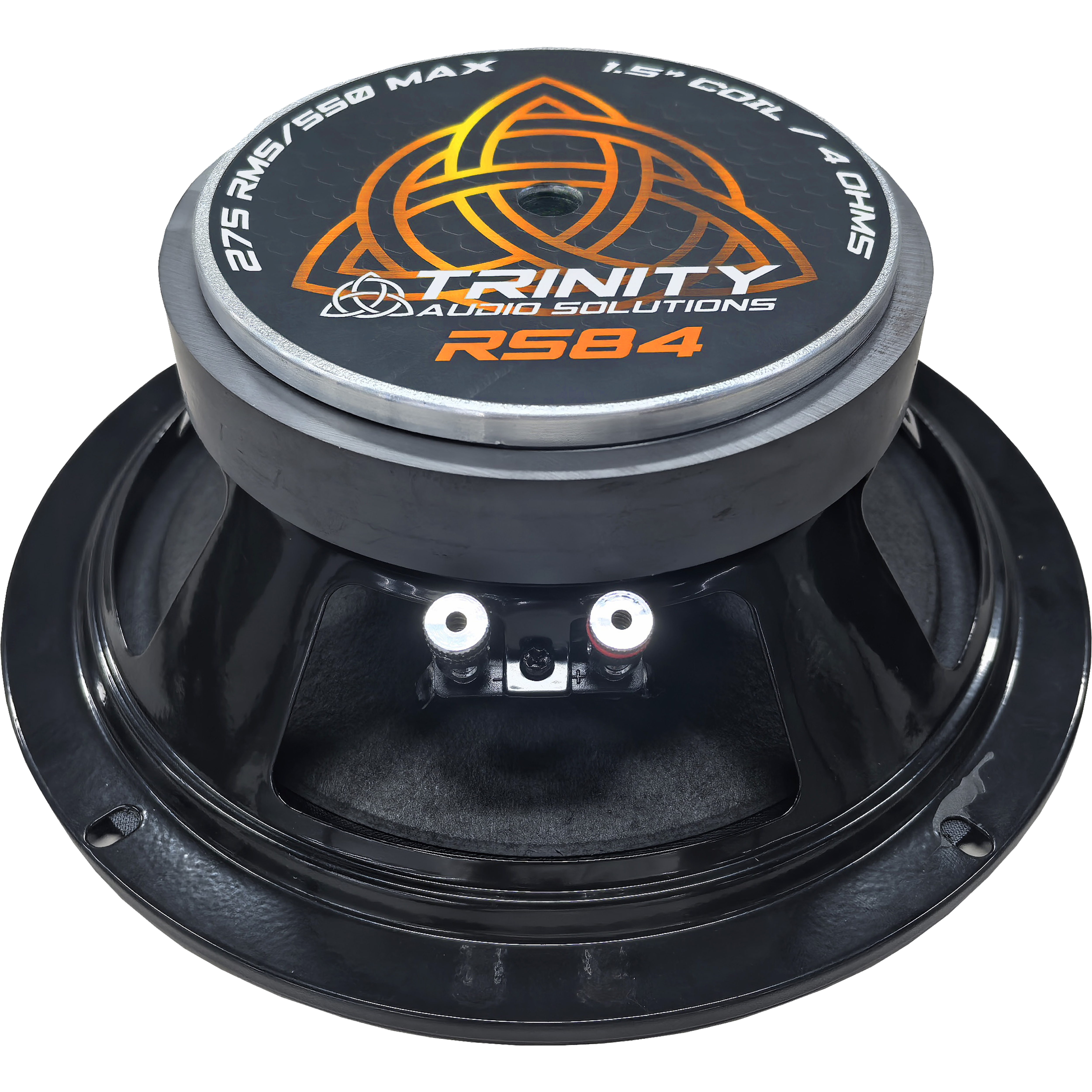

Trinity Audio RS84 8" Pro Audio Midrange Loudspeaker (single) - ***ETA 8/15/26*** Pre-Order NOW!
Trinity Audio RS84 8" Pro Audio Midrange Loudspeaker (single) - ***ETA 8/15/26*** Pre-Order NOW! is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
Trinity Audio RS84 8" Pro Audio Midrange Loudspeaker (single) ...
Description
Description
The long awaited arrival of the Trinity RS84 Midrange Driver is fastly approaching! The all new RS Series 8" Midrange embodies the ultra high sensitivity of the best pro audio midrange speakers with the clarified acoustic authority of what you've come to expect from all Trinity products!
With a workable slim-lined design, the RS84 pro audio midrange speaker fits in spaces where many other bulky 8" speakers may not. And with a customary 4 ohm impedance, they work with almost any musical application.
| SPECIFICATIONS | VALUE |
| Nominal Impedance | 4 Ohms |
| RMS Power Handling | 275 RMS |
| MAX Power Handling | 550 MAX |
| Sensitivity (1w/1m) | 93db |
| Frequency Range | 122Hz - 20kHz |
| Sold as Single or Pair | Single |
| Voice Coil Diameter | 38mm / 1.5" |
| Voice Coil Former Material | Kapton SV |
| Coil Wire Material | Insulated CCA |
| Cone Material | Paper |
| Surround Material | Treated Cloth |
| Basket Material | Stamped Steel |
| Magnet Material | Strontium Ferrite |
| Magnet Weight | 37oz |
| FS | 122Hz |
| RE | 3.3 Ohms |
| QMS | 9.4 |
| QES | 1 |
| QTS | 0.9 |
| VAS | 7.6L /FT |
| CMS | 117.2 uM/N |
| RMS | 15.8kg/s |
| BL | 5.9TM |
| SD | 213cm2 / 33.015in2 |
| XMAX | 2.5mm / 1" |
| Outer Diameter | 208mm / 8" |
| Total Depth | 83mm / 3.27" |
| Cutout Diameter | 176mm / 6.95 |
| Mounting Depth | 76mm / 3" |
